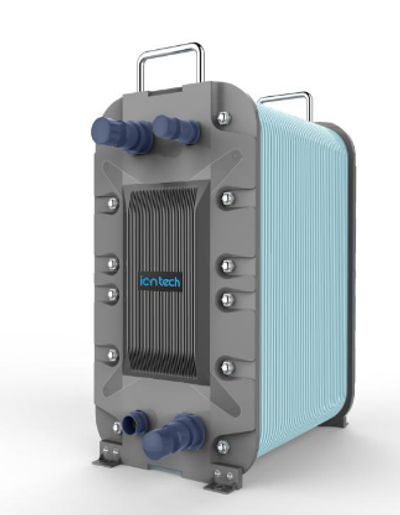

Iontech EDI modules are DS series CEDI stacks and industrial grade. The Iontech modules produce ultrapure water with no chemical regeneration. Iontech EDI is a highly reliable type of water treatment equipment Product quality as measured in MΩ -cm generally exceeds mixed bed quality as well as other EDI technologies.
Continuous Generation of Ultrapure Water
No offline chemical regeneration
No concentrate recirculation or brine injection
Leak free operation with double oring seal
In addition to the standard benefits of Continuous Electrodeionization (CEDI), iontech offers the following benefits over other EDI technologies.
Improved product water quality due to improved membranes
Lower electrical consumption, often times enough to pay for replacement cost of modules
Removable handle for easy installation
Industrial grade components
Nominal Flow Rating: 2 gpm
Minimum Flow: 1 gpm
Maximum Flow: 3 gpm
Operating Current: 0-6 ADC
Operating Voltage: 0-30 VDC
Operating Weight: 100 lbs
Nominal Flow Rating: 5 gpm
Minimum Flow: 2.5 gpm
Maximum Flow: 7 gpm
Operating Current: 0-6 ADC
Operating Voltage: 0-60 VDC
Operating Weight: 155 lbs
Nominal Flow Rating: 9 gpm
Minimum Flow: 4.5 gpm
Maximum Flow: 13 gpm
Operating Current: 0-6 ADC
Operating Voltage: 0-135 VDC
Operating Weight: 175 lbs
Nominal Flow Rating: 12.5 gpm
Minimum Flow: 6.5 gpm
Maximum Flow: 18 gpm
Operating Current: 0-6 ADC
Operating Voltage: 0-165 VDC
Operating Weight: 200 lbs
Nominal Flow Rating: 15 gpm
Minimum Flow: 7.5 gpm
Maximum Flow: 22 gpm
Operating Current: 0-6 ADC
Operating Voltage: 0-200 VDC
Operating Weight: 275 lbs
Nominal Flow Rating: 22.4 gpm
Minimum Flow: 11.5 gpm
Maximum Flow: 33 gpm
Operating Current: 0-6 ADC
Operating Voltage: 0-300 VDC
Operating Weight: 325 lbs
